COMPLETE INSTANT HEATING MODULE
LL-JRMZ-01
Precision Instant Heating Module
From inlet water to controlled hot water in one compact subsystem.
LL-JRMZ-01 combines a microcrystalline heater, pump and controller in a 201×108×40 mm module for adjustable temperature and controlled-volume dispensing.
2100 Wrated power, +5% / −10%
220 V / 50 Hzrated AC supply
≥97%specification thermal efficiency
201×108×40 mmmodule envelope
The full subsystem and its integration points

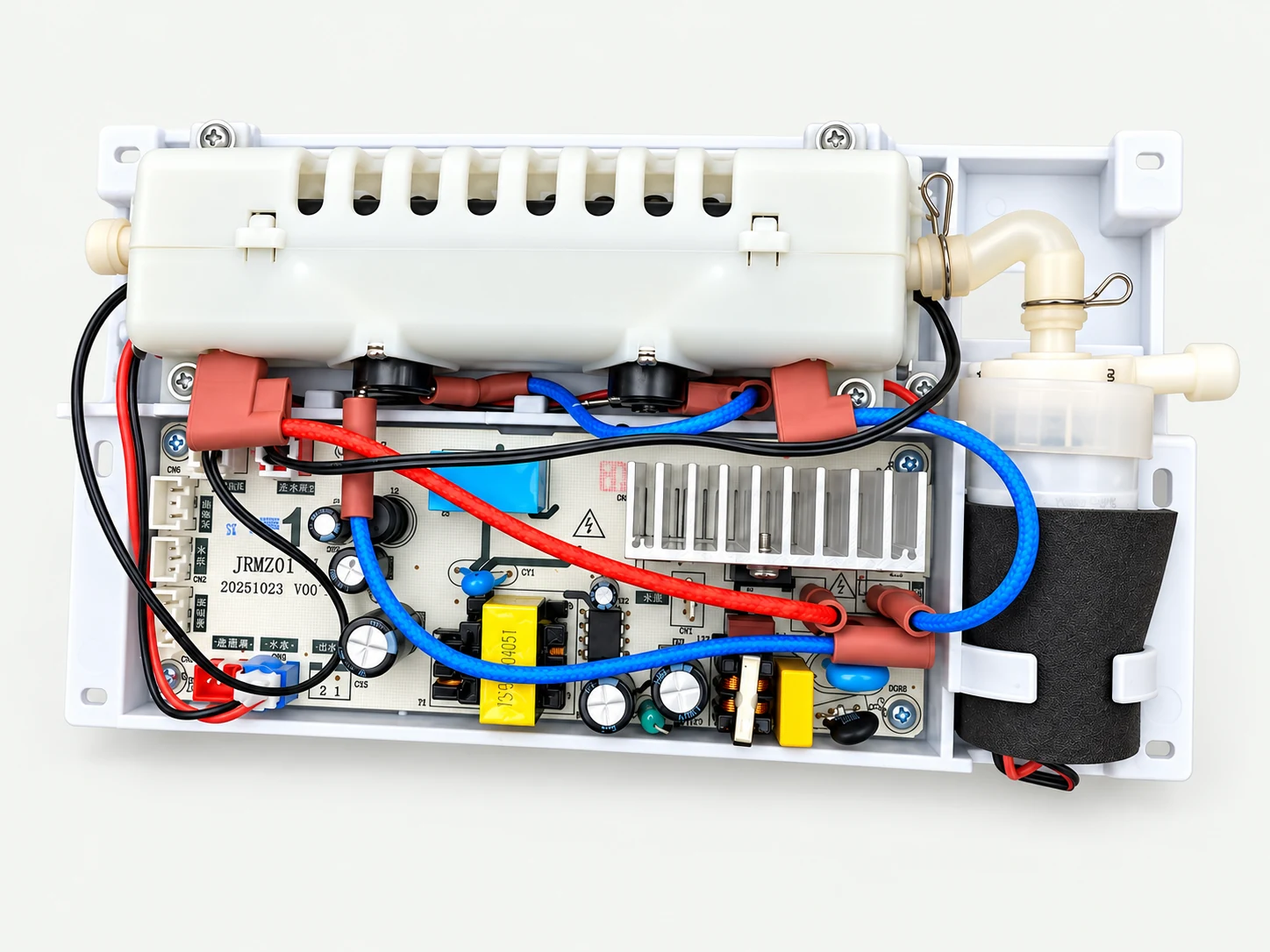

The assembled module is the primary product image. The detail sequence covers appearance, interfaces, dimensions, internal layout and verification.
01 · Complete productWater inletOutlet upward220 V / control03 · Ports & installation
201 × 108 × 40 mmVertical · outlet upward04 · Dimensions & mounting

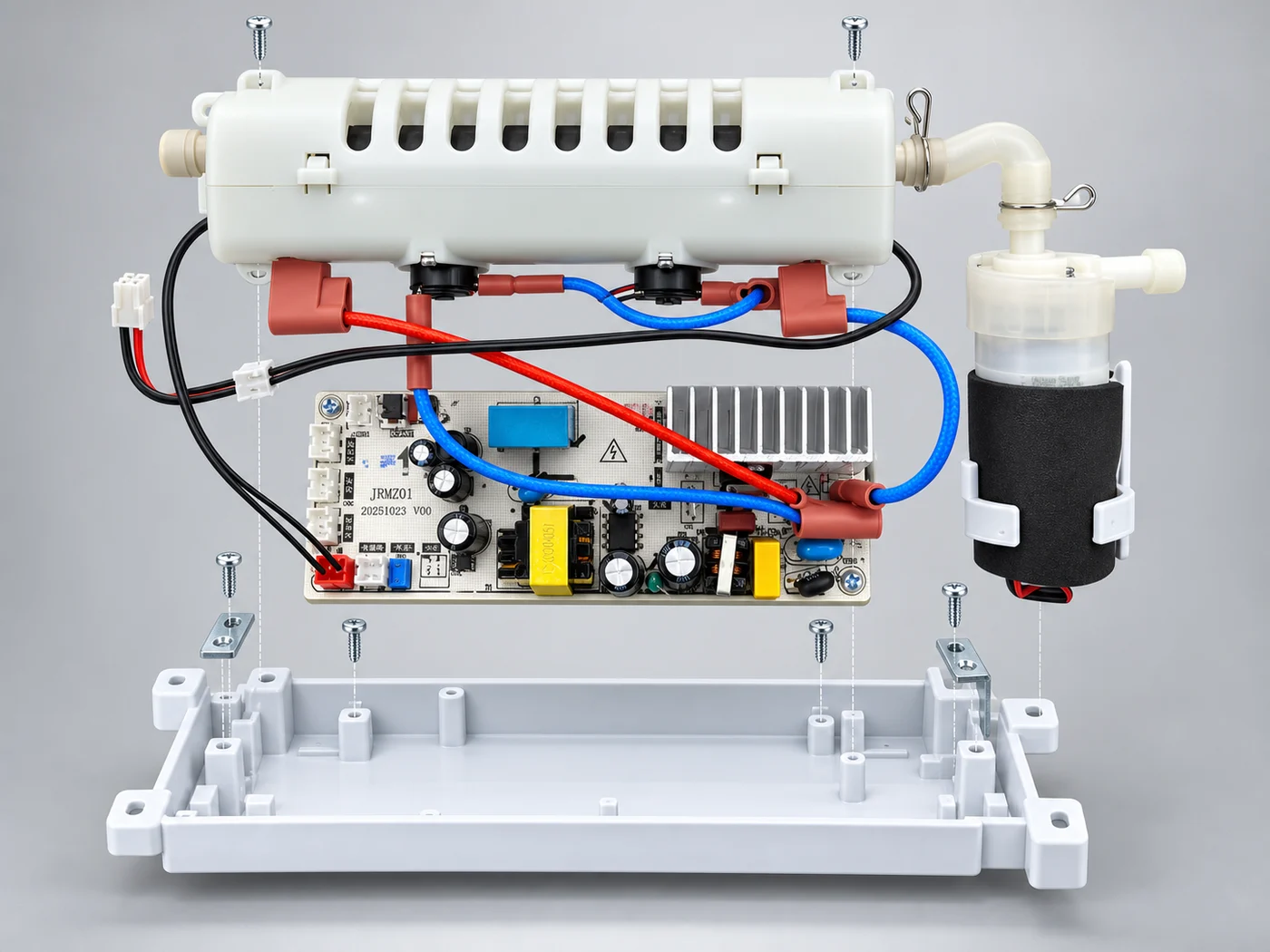

05 · Internal layout
2100 WRated power
±2°CTemperature control
≤±3%Dispensing error
06 · Verification conditions
Performance targets from the product specification
Final settings belong to the target appliance.
Published values apply to the specified rated supply, installation direction, inlet-water condition and control setup. Final appliance settings and cycle performance require validation.
Heater, pump and controller in one module
The pump delivers water through the microcrystalline heating path while inlet and outlet sensing support temperature control and controlled-volume dispensing. Final appliance power, tank, user interface and system-level safety remain part of the OEM design.
Water inlet
→Pump
→Ceramic heater
→Controller
→Hot outlet
Interfaces and vertical installation
Water inletOutlet upward220 V / control201 × 108 × 40 mmVertical · outlet upward
Published specification
| Model | LL-JRMZ-01 |
|---|---|
| Product type | Complete instant-heating module |
| Rated supply | 220 V AC ±10%, 50 Hz |
| Rated power | 2100 W, +5% / −10% |
| Dimensions | 201×108×40 mm |
| Thermal efficiency | ≥97% |
| Rated service life | >10,000 h |
| Temperature range | Ambient to boiling |
| Temperature accuracy | ±2°C |
| Dispensing-volume error | Within ±3% |
| Boiling-water flow | 450–550 mL/min ±1% |
| Installation | Vertical, outlet upward |
